3.0mm SC APC Fiber Optic Field Assembly Connectors Singlemode Fast Connection

  • 3.0mm SC APC Fiber Optic Field Assembly Connectors Singlemode Fast Connection
  • 3.0mm SC APC Fiber Optic Field Assembly Connectors Singlemode Fast Connection
Place of Origin China
Brand Name Hangalaxy
Certification CE, RoHs, FCC, UL, ISO9001
Model Number HGYN-1480
Minimum Order Quantity MOQ Saying is 10pcs
Price egotiation By email or Phone Call
Packaging Details 1PCS Each Individual Quality PE Bag
Delivery Time 7-10 Business Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 25000PCS Monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector Type SC Fiber Mode Singlemode, 9/125um
Fiber Count 1 Color Green
Material Plastic Insertion Loss 0.35dB
Return Loss 55dB Polish Type APC
High Light

sc apc fiber connector

,

fc apc fiber connector
Leave a Message
Product Description

3.0mm SC APC Fiber Optic Singlemode Fast Field Assembly Fast Connectors



How to choose Field Assembly fiber optic Connectors: With the FTTH developing fast ,the field assembly fiber optic fast connectors been created. Fiber optic FASTConnectors connected the fiber optical to home (fiber to the desk ) with the excellent performance.



Why should we choose the fiber optic FASTConnectors?


As a member of fiber optic connectors , the fiber optic FASTConnector play a important role during the fiber to home solutions . Improve the operate effective.

1.Fiber optic FASTConnectors can help operate easily and fast;

2.Fiber optic FASTConnectors have no special requirements for the environment;

3.Passive construction;

4.Operate tools are simple and portable.

Fiber optic FASTConnectors usually used between the fiber optic cable and fiber optic drop cables; the other methords is the fiber optic entry into house between the fiber optic face plate and drop cables.



Features



1. FTTH project usable;
2. Field installable;
3. Insert loss less than 0.3dB;
4. Metal V-shape cavity work well in high and low temperature;
5. Installation less than 1 minutes;
6. Reliable and superior optical performance.



Technical Parameter



Type SC/APC
Fiber Count Simplex
Insertion Loss ≤0.3dB
Fiber Mode 50/125MM
Return Loss >30dB (UPC MM)
Boot Size 2.0*3.0 drop cable
Housing Green
Material Plastic



Short Details



Part Number HGYN-1480
Polish Type APC
Lenght 55mm



Application



1. Telecom / Datacom;
2. LANs, CATV;
3. Fiber to the Home;
4. Premises Distribution;
5. Gigabit Applications (Ethernet, ATM, SONET, etc.

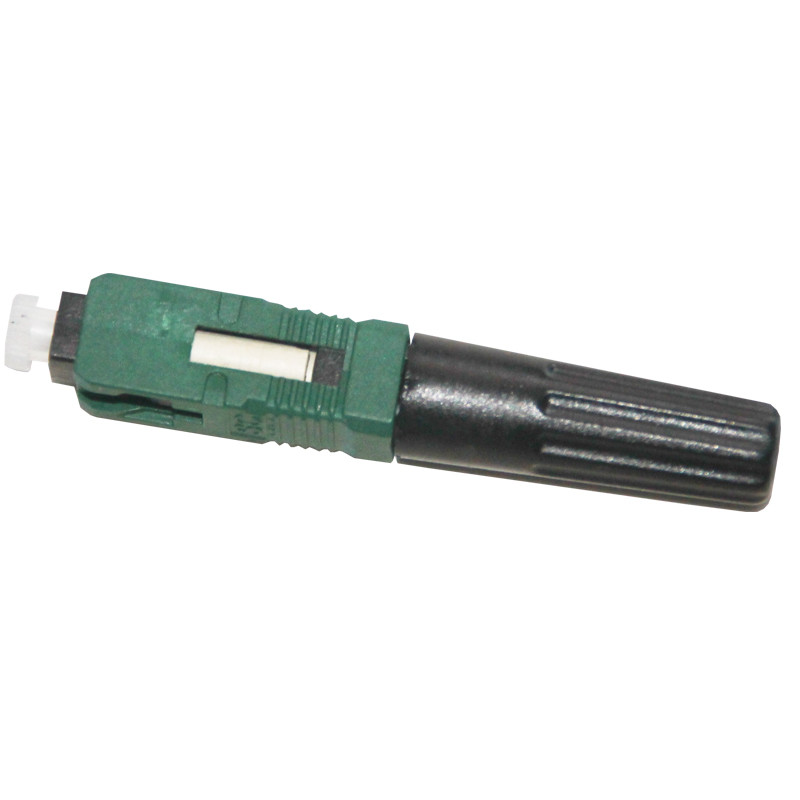

3.0mm SC APC Fiber Optic Field Assembly Connectors Singlemode Fast Connection 0

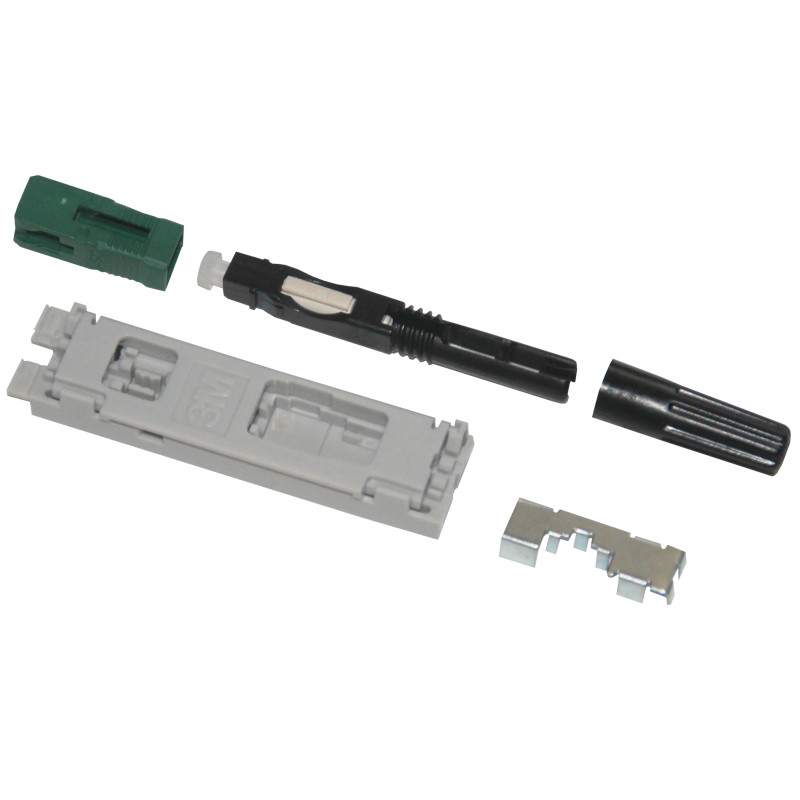

3.0mm SC APC Fiber Optic Field Assembly Connectors Singlemode Fast Connection 1



3.0mm SC APC Fiber Optic Field Assembly Connectors Singlemode Fast Connection 2



Assembly Manual


The field assembly connector can be assembled directly on the end of cable just within minutes. Which makes the installation process easy and fast. It requires no specialized tooling except standard fiber preparation tools: a fiber stripping tool, wipes and a fiber cleaver. Even no electrical power supply is needed to assemble this fiber connector.



Apparently, the pre-stubbed type fiber optic fast connector is a better choice.


FTTH pre-stubbed SC Fiber Optic Fast Field Connector is designed for high quality and high efficiency for installation.the structure of crimping position is a unique design, and need not gluing, polishing neither any consumables.adopted fiber pre-installed structure.could be reused, and convenient for field installation.
