55mm Fiber Optic Field Assembly Connector / Singlemode Sc Apc Fiber Connector
|Place of Origin
|CE, RoHs, FCC, UL, ISO9001
|Minimum Order Quantity
|MOQ Saying is 10pcs
|Negotiation By email or Phone Call
|10PCS Each Individual Quality PE Bag
|7-10 Business Days
|L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
lc apc fiber connector,
fc apc fiber connector

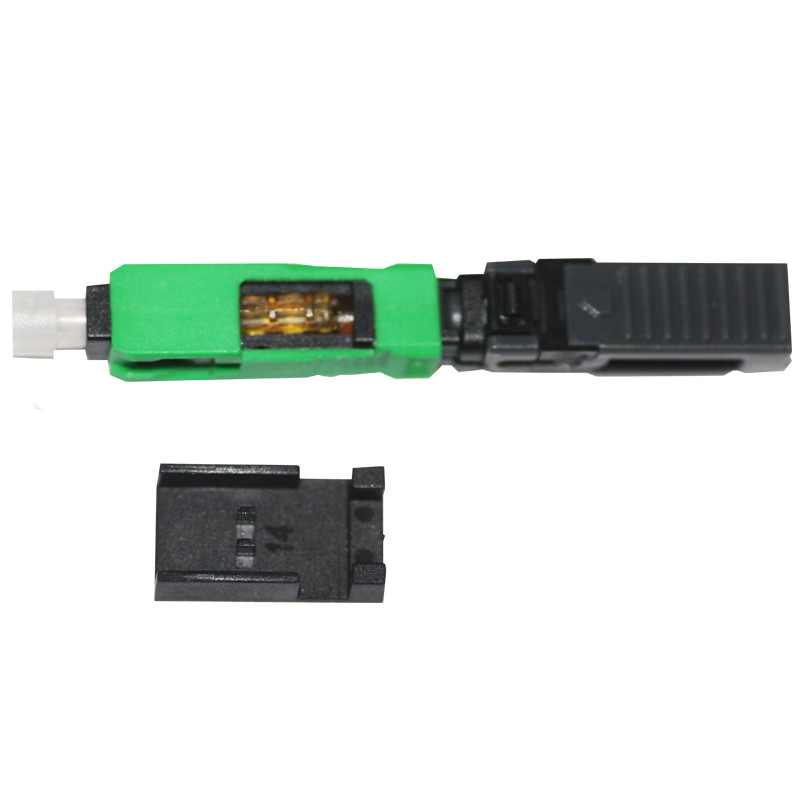

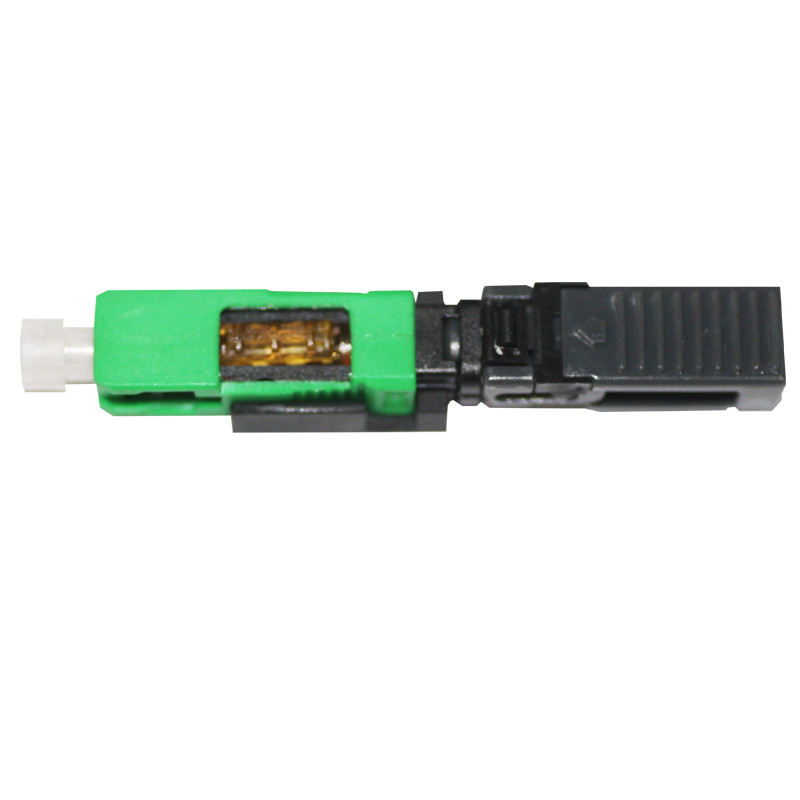

SC APC Fiber Optic Field Assembly Connector, Singlemode Fiber, APC Polish
The SC/APC SM fast connector are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fibers. The Field Assembly Connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and with the expansion of FTTH, is already proving itself to be the connector of choice by incumbents, municipalities, utilities & alternative carriers.
Field Installation: Always right cable length with no cable slack to store;
One piece, pre-assembled design: No small, loose parts;
Simple assembly tool: Fast, easy installation;
900µm buffer strain relief: Excellent pull out strength;

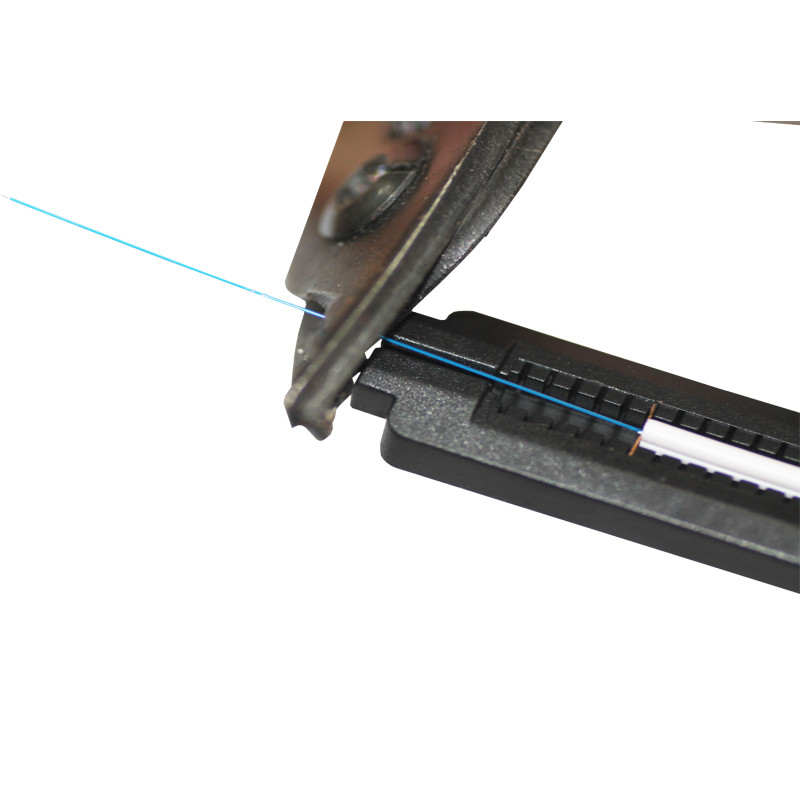

Fiber holder for assembly: Never need to touch bare fiber;
Factory-polished fiber stub in ferrule: No on-site polish or adhesives required;
Bell-shaped boot: Maintains minimum fiber bend radius.
Packaging & Delivery
1.Fumigation of wood drum, plywooden drum or wooden drum
|Ф2.0 x 3.0mm Drop Cable
|APC / UPC
|Green / Blue PC Plastic
|About 50(no fiber cut)
|Insertion Loss Typical value
|Fastening strength of naked fiber
|≥ 10 times
|On-line tensile strength (10N)
|Mechanical durability (500 times)
(drop-off height4m,once per direction,totally 3 times)
High Quality Fibre Optic Products Guarantee
Comprehensive performance testing makes sure the cable work more securely and data transmission more reliable and stable in your network.
