Female 24 Fiber Cable Multimode OM2 LSZH Patch 0.35dB Insertion Loss

  • Female 24 Fiber Cable Multimode OM2 LSZH Patch 0.35dB Insertion Loss
  • Female 24 Fiber Cable Multimode OM2 LSZH Patch 0.35dB Insertion Loss
Place of Origin China
Brand Name Hangalaxy
Certification CE, SGS, UL, ROHS
Model Number HGYN-0174
Minimum Order Quantity MOQ Saying is 10pcs
Price Negotiation By email or Phone Call
Packaging Details 1PCS Each Individual Quality PE Bag
Delivery Time 7-10 Business Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 25000PCS Monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Fiber Mode Multimode, OM2 Brand Hangalaxy
Connector MPO Cable OD 3.0mm
Jacket Color Orange Fiber Count 24 Cores
Insertion Loss 0.35dB Return Loss 35dB
High Light

mpo cassette patch panel

,

fiber trunk cable
Leave a Message
Product Description

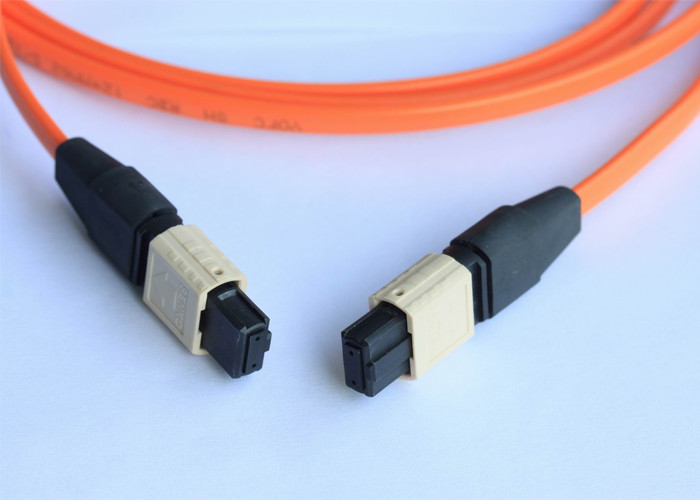

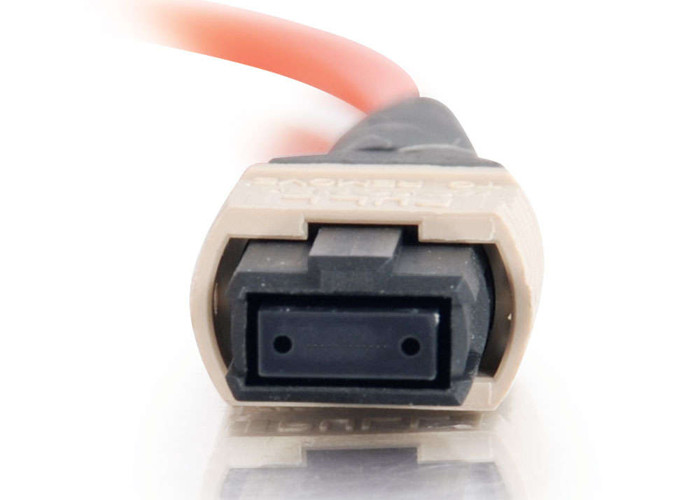

24 Cores Fiber Optic MPO Female Multimode OM2 Orange LSZH Patch Cables







Advantages


Imported production and test equipments:EXFO IL&RL Tester/ Domaille Grinding Machine/ SENKO 3D Interferometer;
Pretty high return loss:≥45dB;
5-year Experience R&D Team;
Customized Production and Service;
40G/100G Data Center Solution.


Application


Data center infrastructure;
Storage area network;
Emerging 40 & 100Gps Protocols;
Parallel optics;
Enterprise network cabling systerm.



Technical Parameter



Fiber Type (ISO/IEC 11801) 62.5/125um, OM2
Jacket Color Orange
Cable OD 3.0mm
Fiber Count 24
Connector A MPO
Connector B MPO
Length 50ft
Attenuation Coefficient (dB/km) ≤3.5 Max (850nm)
≤1.5 Max (1300nm)
≤2.7 Typ (850nm)
≤0.9 typ (1300nm)
Standards Compliance TIA/EIA-568-C.3 and ISO/IEC 11801
Color Options Color Options MM Elite (Beige)
Jacket Material Riser - OFNR
LSZH - Low Smoke Zero Halogen
Plenum - OFNP
Operating Temperature -40℃ to 75℃



Highlights



Lower Insertion Loss & Higher Performance
8 fibers used when mated with 40G QSFP+transceivers. 0.35dB Low IL and stable signal transmission ensuring your network safety. High-quality MTP connectors tested and guaranteed by 3D interferomete.



MPO / MTP® Adapter



Multi-fiber Push On
Known for compact design and simple insertion and removal, it's easier to install, just pull 1 cable 12 fibers for one easy plug-in.
Plenum (OFNP) Rated
With fire-resistance and low smoke production characteristics, Plenum (OFNP) cables are the highest fire rating fiber cable.
Protective Dust Cap
Protect fiber connectors from contaminates and damage that can cause serious network slowdowns or crashes.







Ordering Guide


(1) The big length with pulling eyes for each reel packed.
(2) The fiber channeling of our 40G / 100G Solution will be illustrated in NEATEL drawings, please contact us more details.
(3) The MPO / MTP® Trunk Assemblies in our 40G / 100G Solution are connected via key-up to key-up MPO adapter (Type-B), please contact us if different adapter orientation is required.
(4) Please refer to the "MPO Trunk Assembly" leaftlet if MPO assemblies with 12-Fiber cable or other fiber counts are needed.



Data Center Application



Female 24 Fiber Cable Multimode OM2 LSZH Patch 0.35dB Insertion Loss 0



Hangalaxy Factory



Female 24 Fiber Cable Multimode OM2 LSZH Patch 0.35dB Insertion Loss 1



Packing Information



1PCS Each Individual Quality PE Bag



If you feel any more request about the fiber optic connectivity, please give us a email and a call for asking and we will try our best service for you.
