|Place of Origin:||China|
|Certification:||CE, FDA, SGS, RoHs, ISO9001:2008|
|Minimum Order Quantity:||MOQ Saying is 10pcs|
|Price:||Negotiation By email or Phone Call|
|Packaging Details:||1PCS Each Individual Quality PE Bag|
|Delivery Time:||7-10 Business Days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||25000PCS Monthly|
|Fiber Count:||24 Cores||Cable OD:||3.0mm|
|Fiber Type:||Multimode, OM3||Color:||Aqua|
|Connector Type:||MPO, Senko||Length:||20FT|
|Glass Fiber:||Corning ClearCurve®||Wavelength:||850/1300nm|
mtp to mtp cable,
fiber trunk cable

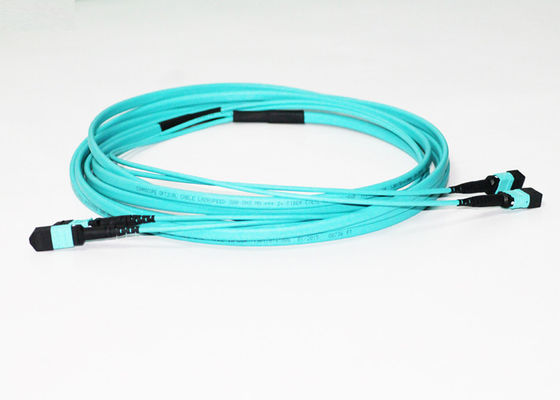

20FT 24 Fibers Optical Multimode MPO to MPO Female End Aqua OM3 Trunk Cable
① Use to distribute some or all of the fibers in a trunk cable to other areas;
② Have pins (Male type) on one end of the connector, and no pin (Female type) on the other end;
③ Choices of MPO/MTP in 12 or 24-fiber connector interface;
④ 100% tested;
⑤ Fiber counts available in 12 / 24 / 36 / 48 / 72 / 96 / 144-fibers
⑥ Round & mini-core cable structure to eliminate bend sensitivity;
⑦ Available in singlemode (9/125um),multimode (50 or 62.5/125um)and 10Gig fiber;
⑧ Optionalpulling eye design to fit for different installation environment.
(1) Data Centre Infrastructures;
(2) Telecomunication Infrastructures.
|Fiber Type (ISO/IEC 11801)||50/125um, OM3, Aqua|
Attenuation Coefficient (dB/km)
|≤ 3.5 Max (850nm)
≤ 1.5 Max (1300nm)
≤ 2.7 Typ (850nm)
≤ 0.9 typ (1300nm)
|TIA/EIA-568-C.3 and ISO/IEC 11801|
|Color Options||MM Elite (Aqua)|
|Minimum Bandwidth: Laser Effective Modal Bandwidth[Mhz-km]||≥2000 (850nm)|
|Jacket Material||Riser - OFNR
LSZH - Low Smoke Zero Halogen
Plenum - OFNP
Plenum - OFNP
Connector Performance - MTP®
|Type and Color Code Connectors||Insertion Loss (IL)||Optical Return Loss (RL)||Operating Temperature|
|Multimode MTP® Standard Connector||0.35 dB Typical (All Fibers)
0.75 dB Maximum (Single Fiber)1,3
|> 20 dB (0°Flat Polished)2,3||-40℃ to 75℃|
|1 IL test according to IEC 61300-3-4;
2 RL test according to IEC 61300-3-6;
3 Tested with proposed encircled flux launch condition on 50μm fiber & 850nm per IEC 61280-4-1.
(1)The big length with pulling eyes for each reel packed.
(2) The fiber channeling of our 40G / 100G Solution will be illustrated in Hangalaxy drawings, please contact us more details.
(3) The MPO / MTP® Trunk Assemblies in our 40G / 100G Solution are connected via key-up to key-up MPO adapter (Type-B), please contact us if different adapter orientation is required.
(4) Please refer to the "MPO Trunk Assembly" leaftlet if MPO assemblies with 12-Fiber cable or other fiber counts are needed.
Questions & Answers
Q: Is this connector length included in the total cable length? For example, for a 1m cable, is the length distribution a 0.02m connector + 0.96m cable + 0.02m connector or a 0.06m connector + 1m cable + 0.06m connector?
A: The connector length of 0.02m is included in the total length. The total length is the distance from the connector ferrule at one end to the ferrule at the other end.
Q: Is this match dell?
A: Thanks for your question. This OM4 (OM3) multimode MTP trunk cable could be connected to the Dell's device through the Dell transceivers. Here are the related Dell transceivers for your reference. If you can provide the model of your device, we'll recommend the related modules and cables for you.
Q: Can I change the polarity and pins of this cable?
A: Thanks for your question. Please kindly note that the polarity and pins of this cable can not be changed. To meet your needs of changing polarity and pins, the MTP PRO trunk cable #80734 is recommended for you.
