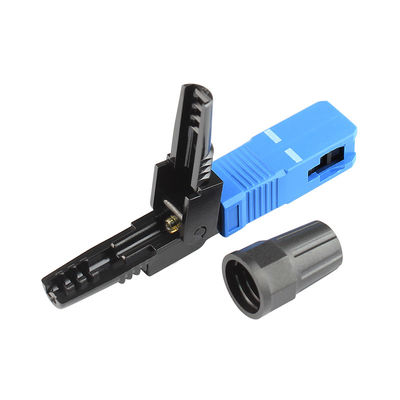

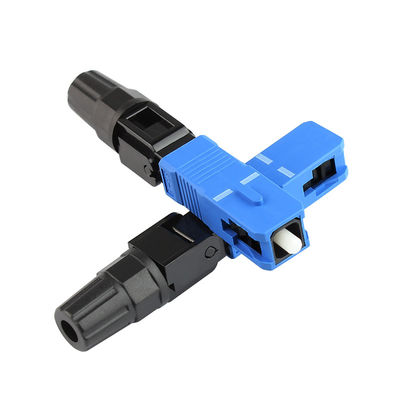

Fast Fiber Optic Field Assembly Connectors SC UPC For 2.0x3.0mm FTTH Drop Cable

  • Fast Fiber Optic Field Assembly Connectors SC UPC For 2.0x3.0mm FTTH Drop Cable
  • Fast Fiber Optic Field Assembly Connectors SC UPC For 2.0x3.0mm FTTH Drop Cable
Place of Origin China
Brand Name Hangalaxy
Certification CE, SGS, UL, ROHS
Model Number HGYN-001
Minimum Order Quantity MOQ Saying is 10pcs
Price Negotiation By email or Phone Call
Packaging Details 1PCS Each Individual Quality PE Bag
Delivery Time 7-10 Business Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 25000PCS Monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector Type SC Polish Type UPC
Color Blue Insertion Loss 0.35dB
Return Loss 55dB Cable OD 2.0x3.0
Housing Plastic Ferrule Cameric
High Light

sc apc fiber connector

,

fc apc fiber connector
Leave a Message
Product Description

Optical Fiber Fast Field Assembly Connector SC/UPC For 2.0x3.0mm FTTH Drop Cable





Feature



● Comply with TIA/EIA and IEC;
● Quick and easy fiber termination;
● RoHS compliant;
● Reusable termination capability [Up to 5 times];
● Easy to deploy fiber solution;
● High success rate of connections;
● Low Insertion & Back Reflection;
● No special tools required.



Application



● All fiber interconnection;
● Telecom Distribution and Local Area Networks;
● FTTH and FTTx;
● Passive optical networks [ATM, WDM, Ethernet];
● Broadband, Cable TV(CATV).



Technical Parameter



Category Specification
Applicable for Ф2.0 x 3.0mm Indoor Drop Cable
Fiber mode 9/125μm Singlemode
Polish Type APC / UPC
Dimension 55mm
Housing Green / Blue PC Plastic
Ferrule Material Ceramic(Zirconia)
Operation time S About 50(no fiber cut)
Insertion Loss dB ≤ 0.50
Insertion Loss Typical value dB ≤ 0.30
Return Loss dB ≥ 45.0
Fastening strength of naked fiber N ≥ 5
Tensile strength N ≥ 50
Reusable Time ≥ 10 times
Operating Temperature ℃ -40～+75
On-line tensile strength (10N) dB ΔIL≤ 0.3
Mechanical durability (500 times) dB ΔIL≤ 0.3

Drop-off test

(drop-off height4m,once per direction,totally 3 times)

 dB ΔIL≤ 0.3
Conformance TIA/EIA 604-3





Packing Details for Reference (or Meet Customized Standard)



Blister Box Packing - Usage Instruction Included



  Size (CM) 12*9
QTY (PCS/Bag) 5
Net Weight (KG/PCS) 0.005kg
