SC APC Fiber Optic Field Assembly Connectors 55mm Length

Place of Origin China
Brand Name Hangalaxy
Certification CE, UL, FCC, RoHs, ISO9001:2008
Model Number H-001
Minimum Order Quantity MOQ Saying is 10pcs
Price Negotiation By email or Phone Call
Packaging Details 1PCS Each Individual Quality PE Bag
Delivery Time 7-10 Business Days
Payment Terms L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability 250000PCS Monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Connector Type SC Polishing Type APC
Color Green Housing PC Plastic
Cable OD 2.0 X 3.0mm Length 55mm
High Light

APC Fiber Optic Field Assembly Connectors


SC Fiber Optic Field Assembly Connectors


55mm Length Optical Fiber Connector

Leave a Message
Product Description

2.0 x 3.0mm SC APC Polishing Fiber Optic Field Fast Quick Assembly Connector


1, What Is Mechanical Fiber Splicer?


Fiber optic mechanical splicer performs a similar function to the fusion splice except that the fibers are held together by mechanical means rather than by a welding technique. Mechanical splices somewhat look like fusion splice protection sleeves. In a mechanical splice, two cleaved fiber tips are mechanically aligned to each other by a special housing. Usually, index matching gel is positioned between the fiber tips to maximize coupling and minimize back reflection.


2, Advantages of Mechanical Splicer


Mechanical splicer is ideal for used in FTTx projects, it does not require the fusion splicer to get to work, it can join the 2 optical fiberglass mechanically and precisely.

> Mechanical splices require no power supplies;
> Many mechanical fiber splice designs require no extra tools beyond a fiber stripper and fiber cleaver;
> They can be used in situations where fusion splicing is not practical or impossible;
> Mechanical splices can be made within a couple of minutes, this makes it ideal for temporary connections.



3, Technical Parameter


Applicable for 3.1 x 2.0mm Drop cable,φ0.25 mm & φ0.90 mm Fiber
Optical fiber diameter 125μm (652 & 657)
Tight buffer diameter (μm) 250 μm
Fiber mode Single & multi mode
Operation time About 60s (no fiber cut)
Insert loss ≤ 0.15dB (1310nm & 1550nm)
Return loss ≤ -40dB
Fastening strength of naked fiber >5 N
Fastening strength of naked fiber holder >10 N
Repeatability (10 times) △ IL ≤ 0.2dB △ RL ≤ 5dB


4, Disadvantages of Mechanical Fiber Splicer


Fiber optic mechanical splices have their cons too.

> Higher insertion loss. The typical insertion loss for a mechanical splice is about 0.2dB which is significantly higher than the 0.02dB loss for typical fusion splice.
> Mechanical splices are typically for multimode fibers. The tough alignment tolerance for single mode fibers makes it hard for mechanical splices to meet
> Mechanical splice is more expensive than fusion splices. But if you take into account the expensive fusion splicing machines that fusion splices need, the average cost is actually much lower for mechanical splice if you just do a few splices.

> Since the refractive index of most index matching compounds varies with temperature, so the optical performance of a mechanical splice can be sensitive to ambient temperature
> Mechanical splices are not thought to be as reliable as fusion splices over long periods of time
> Mechanical splices are used only in relatively benign environments such as inside an office building The principle of mechanical splice is simple and straightforward. Two fibers are stripped, cleaned and cleaved. They are then aligned and held in position either by epoxy resin or by mechanical clips.

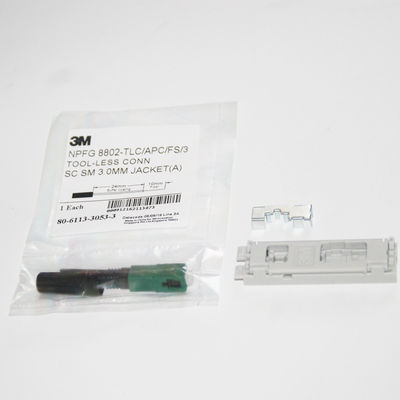

SC APC Fiber Optic Field Assembly Connectors 55mm Length 0


SC APC Fiber Optic Field Assembly Connectors 55mm Length 1


5, Application


● All fiber interconnection;
● Telecom Distribution and Local Area Networks;
● FTTH and FTTx;
● Passive optical networks [ATM, WDM, Ethernet];
● Broadband, Cable TV(CATV).
