53mm SC APC Singlemode Field Assembly Optical Connectors 0.25dB Green Color

  • 53mm SC APC Singlemode Field Assembly Optical Connectors 0.25dB Green Color
  • 53mm SC APC Singlemode Field Assembly Optical Connectors 0.25dB Green Color
  • 53mm SC APC Singlemode Field Assembly Optical Connectors 0.25dB Green Color
Place of Origin China
Brand Name Hangalaxy
Certification SGS, CE, ROHS, UL
Model Number HGYN-001
Minimum Order Quantity 1000PCS
Price Send by email for details
Packaging Details 100PCS/Case
Delivery Time 5-7 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 3000000pcs monthly production capacity

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Length 53mm Fiber Mode Singlemode
Color Green Connector Type SC
Polish Type APC Material PC
High Light

Singlemode Field Assembly Optical Connectors

,

SC APC fiber cable connector 53mm

,

0.25dB Green fiber optical connectors
Leave a Message
Product Description

0.25dB SC APC Singlemode Field Assembly Optical Connectors

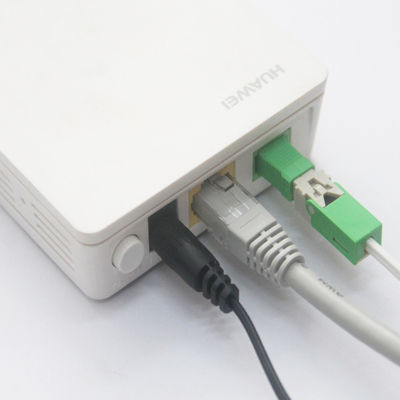

53mm SC APC Singlemode Field Assembly Optical Connectors 0.25dB Green Color 0



Products Overview




EASYFast® 855 series are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or optical fibers. EASTFast® are compatible with 2.0 x 3.0mm and 1.6 x 2.0mm (SC only) fiber optical cable.



Keyed Characteristic


1)No epoxy, no Polish;
2)Low insertion loss;
3)Fiber can be reinserted up to 500 times;



Application


1)All fiber interconnection;
2)Telecom Distribution and Local Area Networks;
3)FTTH and FTTX;
4)Passive optical networks [ATM, WDM, Ethernet];
5)Broadband, Cable TV(CATV).

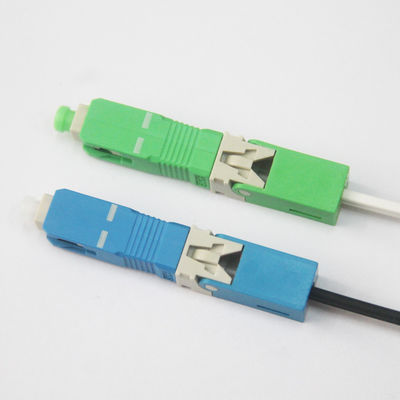

53mm SC APC Singlemode Field Assembly Optical Connectors 0.25dB Green Color 1



Table 1 is as follows



Item Method Standard Sampling Plan
Appearance

1, Visual Inspection

2, At 200× amplifier

1, No obvious scratch, chips, deformation and meets the specification type

2, See Table 2

General inspection

level I, AQL 0.04
Dimension CCD projector detection According to the Drawings

General inspection

level I, AQL 0.04





Endface dimension





3D Interferometer

 Type Radius(mm)

Apex offset

(μm)

Concavity and

Convexity (nm)





General inspection

level I, AQL 0.04
PC (Ф2.5mm) 10～25 ≤50 -100~+50
PC (Ф1.25mm) 5～15 ≤50 -100~+50
    APC (Ф2.5mm) 5～12 ≤50 -100~+50
    APC (Ф1.25mm) 5～1 ≤50 -100~+50
Insertion Loss I/R Test

PC: Average Value: ≤0.2dB, Maximum Value: ≤0.4dB

APC: Average Value: ≤ 0.3 dB, Maximum Value: ≤ 0.5 dB

General inspection

level II, AQL 0.025
Return Loss I/R Test PC: ≥40dB; APC: ≥50dB

General inspection

level II, AQL 0.025
Average Assembly Time Skilled Operator ≤3mins

General inspection

level II, AQL 0.025
One-time Assembly Yield Normal skilled operator ≥98%

At least 98 per

assembly
Repeatability Skilled Operator ≥5 times

Special Standard S-I,

AQL 1.5
