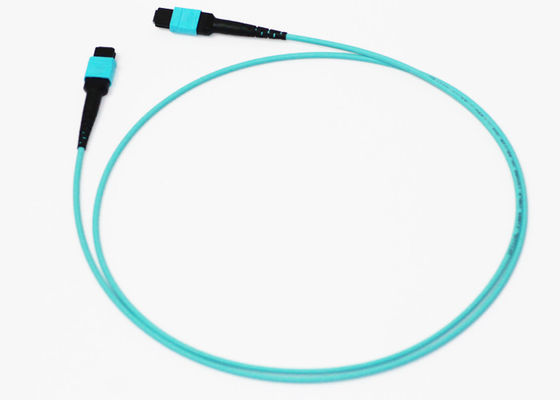

24 MT MPO To MPO 24 Fiber Cable Multimode Polarity B OFNR Riser Jacket

  • 24 MT MPO To MPO 24 Fiber Cable Multimode Polarity B OFNR Riser Jacket
Place of Origin China
Brand Name Hangalxy
Certification CE, SGS, ROHS, UL
Model Number HGYN-024
Minimum Order Quantity MOQ Saying is 10pcs
Price Negotiation By email or Phone Call
Packaging Details 1PCS Each Individual Quality PE Bag
Delivery Time 8 Business Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 25000PCS Monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name MPO To MPO 24 Fiber Cable Polish PC To PC
Color Options MM Elite (Aqua) Insertion Loss 0.35dB
Return Loss 20dB Jacket Material Plenum (OFNP)
High Light

0.35dB Fiber Optic MPO MTP Cable

,

Multimode Polarity MPO MTP Cable

,

24 Fiber MPO MTP Cable
Leave a Message
Product Description

24 MT MPO to MPO Fiber Optic Multimode OM3 Patch Cord Polarity B OFNR Riser Jacket



Item Description


HANGALAXY’s manufactures 12-fiber MT-MT patch cords used in the parallel fiber optic module (QSFP+SR4) the connection to the optical lens and External Port. We use low loss MT Ferrule, Corning Clean Curve OM2 or OM3 fiber to achieve low attenuation. Total length’s tolerance ±0.15mm, MT Ferrule’s tolerance ±0.05mm, are available to satisfy coupling in small space of the module.


Keyed Characteristics


(1) Transmission rate: 40Gbps/100Gbps.
(2) GR-1435 compliant.
(3) Simple structure easy to locate.
(4) Low cost.
(5) Customized products available.



Applications

  • Telecommunication networks
  • Data centers
  • Supports SFP, QSFP, CFP applications
  • 40G to 10G transition
  • CATV;
  • Active device termination;
  • Telecommunication networks;
  • Metro;
  • Local Area Networks;
  • Data processing networks
  • Test equipment;
  • Premise installation;
  • Wide Area Networks



Technical Attibutes



Short name 12 / 24F OM3 Trunk Cables



Attenuation Coefficient

[dB/km]

≤ 3.5 Max (850nm)

≤ 1.5 Max (1300nm)

≤ 2.7 Typ (850nm)

≤ 0.9 typ (1300nm)
Standards Compliance TIA/EIA-568-C.3 and ISO/IEC 11801
Color Options MM Elite (Aqua)



Cable Performance



Fiber Type (ISO/IEC 11801) 50/125um, OM3, Aqua



Attenuation Coefficient

[dB/km]

≤3.5 Max (850nm)

≤1.5 Max (1300nm)

≤2.7 Typ. (850nm)

≤0.9 Typ. (1300nm)
Minimum Bandwidth: Overfilled Launch [Mhz-km]

≥1500 (850nm)

≥500 (1300nm)
Minimum Bandwidth: Laser Effective Modal Bandwidth[Mhz-km] ≥2000 (850nm)



Jacket Material

Riser - OFNR

LSZH - Low Smoke Zero Halogen

Plenum - OFNP



24 MT MPO To MPO 24 Fiber Cable Multimode Polarity B OFNR Riser Jacket 0



Ordering Guide



(1) The big length with pulling eyes for each reel packed.
(2) The fiber channeling of our 40G / 100G Solution will be illustrated in NEATEL drawings, please contact us more details.
(3) The MPO / MTP® Trunk Assemblies in our 40G / 100G Solution are connected via key-up to key-up MPO adapter (Type-B), please contact us if different adapter orientation is required.
(4) Please refer to the "MPO Trunk Assembly" leaftlet if MPO assemblies with 12-Fiber cable or other fiber counts are needed.



Our Factory



24 MT MPO To MPO 24 Fiber Cable Multimode Polarity B OFNR Riser Jacket 1



Cable Packing Information



24 MT MPO To MPO 24 Fiber Cable Multimode Polarity B OFNR Riser Jacket 2



The reason why Choose us:

1. On time delivery

2. Customization

3. Factory outlet

4. Large product inventory with massive production line

5. China's professional gas detection leader

6. Quality guarantee

7. Product distribution involves multi-fields, dozens of countries including some developed countries.
