LC UPC Fiber Optic Pigtails Singlemode G657A1 Ultra Bend LSZH Jacket

  • LC UPC Fiber Optic Pigtails Singlemode G657A1 Ultra Bend LSZH Jacket
  • LC UPC Fiber Optic Pigtails Singlemode G657A1 Ultra Bend LSZH Jacket
Place of Origin China
Brand Name Hangalaxy
Certification ISO9001, CE, RohS, SGS, UL
Model Number HGYN-013
Minimum Order Quantity MOQ Saying is 10pcs
Price Negotiation By email or Phone Call
Packaging Details 1PCS Each Individual Quality PE Bag
Delivery Time 7-10 Business Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 25000PCS Monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Fiber Count 1 Connector Type LC
Polishing Type UPC Cable OD 0.9mm
Insertion Loss 0.2dB Jacket Sheath LSZH
Cable Color Yellow Return Loss 55dB
High Light

patch cord pigtail

,

pigtail fiber optic cable
Leave a Message
Product Description

0.9mm LC UPC Singlemode Fiber Optic G657A1 Ultra Bend Pigtail LSZH Jacket


Products Description



This is the optical pigtails using 900µm Buffered SM Fibers, 100% Optically Tested for Premium Performance. Assembly with high quality PC Zirconia LC style ferrules and green housing. Neatel’s fiber optic pigtails are manufactured with superior quality connectors, factory polished to provide low insertion loss and low back reflection. Pigtails are available in LC, MT-RJ, SC and ST-style versions with both singlemode and multimode 900µm buffered fiber types. Pigtails are also available with laser optimized 50/125µm fiber. All pigtails are 100% factory tested for insertion loss after polishing. For special requirements such as custom lengths and buffer colors, contact our representative line.



Application Supported



(1) Fusion splicing to OSP or building cables;
(2) Pigtailing to active devices such as LASERS or LEDs;
(3) Active device termination;
(4) CATV system;
(5) Active device terminations;
(6) LAN / WAN;
(7) FTTx (including FTTB, FTTC, FTTD, FTTH).



Keyed Characteristics



(1) Zirconia Ceramic Ferrule Optimum IL and RL;
(2) 0.9mm cable available for high density splicing applications;
(3) Tight buffer pigtail for ease of splicing.



Technical Details



Fiber Type SM MM



Connector Tytpe

 MTRJ

D4, FC, SC, ST, LC,

E-2000, MU

D4, FC, SC, ST, LC,

E-2000, MU

 MTRJ
Insertion Loss (Typical) ≤0.4dB ≤0.2dB ≤0.4dB ≤0.2dB
Insertion Loss (Max) ≤0.5dB ≤0. 3dB ≤0.3dB ≤0.5dB



Return Loss (Typical)

 PC   ≥50dB
APC ≥65dB
UPC ≥55dB ≥55dB
Mating Durability ≤0.2dB
Durability ≥1000 times
Storage Temperature - 40℃～+ 85℃



Dimensions



Cable Diameter 0.9mm
Jacket Color Yellow or Customized
Connector LC
Polishing Type UPC
Fiber Type G657A1, SM, Single-mode
Cable Length 1m / 10ft; or customized



LC UPC Fiber Optic Pigtails Singlemode G657A1 Ultra Bend LSZH Jacket 0

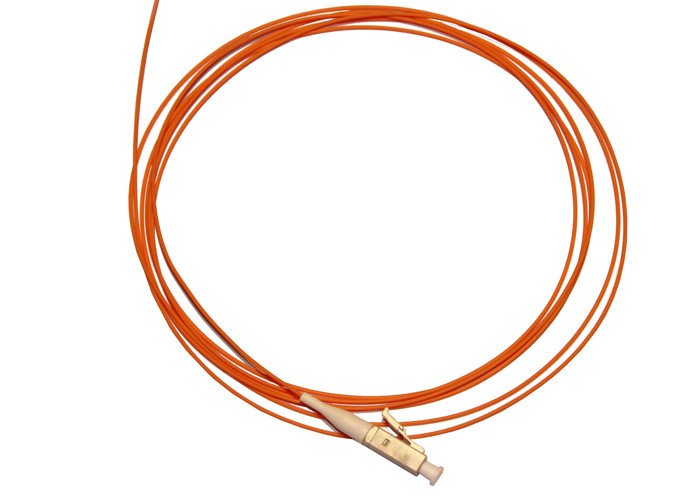

LC UPC Fiber Optic Pigtails Singlemode G657A1 Ultra Bend LSZH Jacket 1



Environmental Specifications



Environmental Space Plenum
Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)



Inspection Focus - Zone A, B, C, D of the fiber connector end face



Zone Single-Mode (µm)
A - Core (Detection fineness 0.5µm) 0 - 25
B - Cladding 25 - 120
C - Adhesive 120 - 130
D - Contact 130 - 250

Zone A: Do not have any scratches, dents or Epoxy.

Zone B to Zone C: Allows for minor scratches and dents. There can be no dirt.

Zone D: Although this area is already close to the outer ferrule, it must still be inspected in detail. Because this area still belongs to the transmission area and is located in an important position to engage with the connector.



OEM/ODM Service


If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it. 0.9mm LC UPC Singlemode Fiber Optic G657A1 Ultra Bend Pigtail LSZH Jacket.



LC UPC Fiber Optic Pigtails Singlemode G657A1 Ultra Bend LSZH Jacket 2



Packing


(1) According to Stardard Export Packing.
(2) Carton box, wooden box, wooden pallet.

Shipping


(1) International express such as UPS, TNT, DHL, etc.
(2) Internatioal air: CA, AA, EA, etc.
(3) By sea.
