3.0mm MTRJ To ST Pigtail Multimode / OM2 Duplex Fiber Patch Cord LSZH Jacket

Place of Origin China
Brand Name Hangalaxy
Certification CE, SGS, UL, ROHS
Model Number HGYN-0155
Minimum Order Quantity MOQ Saying is 10pcs
Price Negotiation By email or Phone Call
Packaging Details 1PCS Each Individual Quality PE Bag
Delivery Time 7-10 Business Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 25000PCS Monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 MTRJ Connector 2 ST
Polish Type UPC Cable OD 3.0mm
Cable Color Red Cable Jacket LSZH
Fiber Mode Multimode Wavelength 850nm
High Light

fiber optic pigtail splicing

,

pigtail fiber optic cable

Leave a Message
Product Description

3.0mm MTRJ to ST Fiber Multimode OM2 Optic Pigtails Duplex Patch Cable



Description



Hangalaxy manufactures offers a wide range of patch cords, designed and manufactured for demanding network applications. It comprises of multimode and singlemode. Both ends are terminated with a high performance hybrid or single type connector comprising of a SC, ST, FC, LC, MU, MTRJ, E2000, DIN connector in simplex and duplex. Pigtails are available in LC, MT-RJ, SC and ST-style versions with both singlemode and multimode 900µm buffered fiber types. Pigtails are also available with laser optimized 50/125µm fiber. All pigtails are 100% factory tested for insertion loss after polishing. For special requirements such as custom lengths and buffer colors, contact our representative.



Features



(1) Zirconia Ceramic Ferrule Optimum IL and RL;
(2) 0.9mm cable available for high density splicing applications;
(3) Tight buffer pigtail for ease of splicing.



Applications



1. Active device termination;
2. CATV system;
3. Active device terminations;
4. LAN / WAN;
5. FTTx (including FTTB, FTTC, FTTD, FTTH).



Technical Parameter



Fiber Type SM MM



Connector Tytpe

MTRJ

D4, FC, SC, ST, LC,

E-2000, MU

D4, FC, SC, ST, LC,

E-2000, MU

MTRJ
Insertion Loss (Typical) ≤0.4dB ≤0.2dB ≤0.4dB ≤0.2dB
Insertion Loss (Max) ≤0.5dB ≤0. 3dB ≤0.3dB ≤0.5dB



Return Loss (Typical)

PC   ≥50dB
APC ≥65dB
UPC ≥55dB ≥55dB
Mating Durability ≤0.2dB
Durability ≥1000 times
Storage Temperature - 40℃~+ 85



Cable Diameter 0.9mm
Jacket Color Yellow or Customized
Connector LC
Polishing Type APC
Fiber Type G657A1, SM, Single-mode
Cable Length 1m / 10ft; or customized



Environmental Space Plenum
Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)

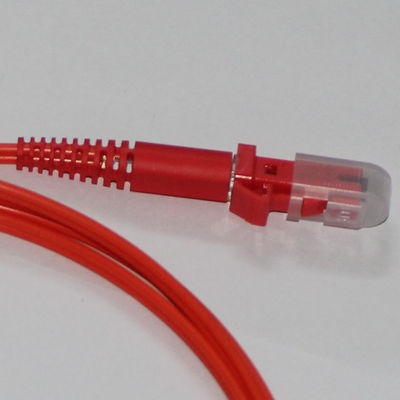

3.0mm MTRJ To ST Pigtail Multimode / OM2 Duplex Fiber Patch Cord LSZH Jacket 0

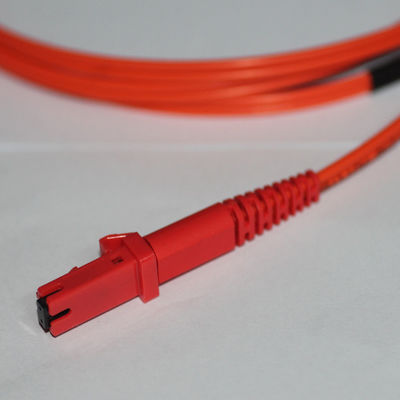

3.0mm MTRJ To ST Pigtail Multimode / OM2 Duplex Fiber Patch Cord LSZH Jacket 1



PLC Spliters Workshop



3.0mm MTRJ To ST Pigtail Multimode / OM2 Duplex Fiber Patch Cord LSZH Jacket 2



Packing Information



1PCS Each Individual Quality PE Bag.



If you feel any more request about the fiber optic connectivity, please give us a email and a call for asking and we will try our best service for you.
