5dB LC UPC Fixed Singlemode Fiber Optic Attenuators Blue Color Housing

Place of Origin China
Brand Name Hangalaxy
Certification CE, UL, SGS, ROHS
Model Number HGYN-098
Minimum Order Quantity MOQ Saying is 10pcs
Price Negotiation By email or Phone Call
Packaging Details 1PCS Each Individual Quality PE Bag
Delivery Time 7 Business Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15000PCS Monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Polish Type UPC Color Blue
Connector Type LC Ferrule Type Zirconia Ceramic
Connector Gender Fixed Male To Female Transfer Mode Singlemode
Attenuation 5dB Max Optical Input Power 200mW
High Light

fixed optical attenuator

,

variable optical attenuator

Leave a Message
Product Description

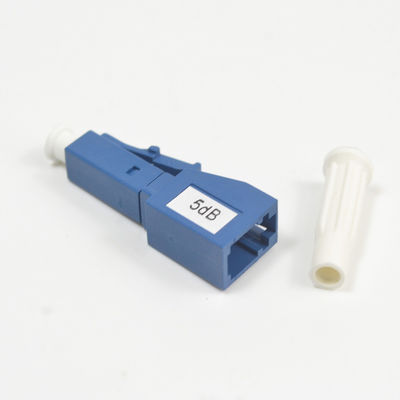

5dB LC UPC Fixed Singlemode Fiber Optic Attenuator Blue Housing







Application



Optical attenuator is a passive device used to reduce the power level of an optical signal. It is generally used in single-mode long-haul applications to prevent optical overload at the receiver. Optical attenuator is widely used in CWDM&DWDM, CATV systems, data center networks, test equipment and other high power applications.



Technical Parameter



Connector Type LC
Polish Type UPC
Color Blue
Attenuation 5dB
Ferrule Type Zirconia Ceramic
Attenuation Accuracy ±0.5dB
Return Loss ≥45dB
Max Optical Input Power 200mW
Humidity 95%RH
Polarization Dependent Loss ≤0.2dB



Item Specifications
Wavelength 850 nm (Multi-Mode 50/125um)
Attenuation Tolerance (dB) 2dB,5dB,10dB <±1.0dB ( typical ) standard
15dB<±10% ( typical ) standard
2dB,5dB,10dB <±0.5dB ( typical ) premium
15dB<±5% ( typical ) premium
Return Loss /
Operating Temperature -40℃~+85℃
Storage Temperature -40℃~+85℃






Features


(1) Precise attenuation values;
(2) Low PDL & insertion loss;
(3) Precisional reflection polishing.



1. Flexiable case for easy portability


Accurate size armed with elegant dust cap, better ensure the handy installation and protection from out-service.



2. Durable plastic shell for permanent protection


Shaped with precision refined Polymer, our attenuators perfectly protect the core insert from external damage.

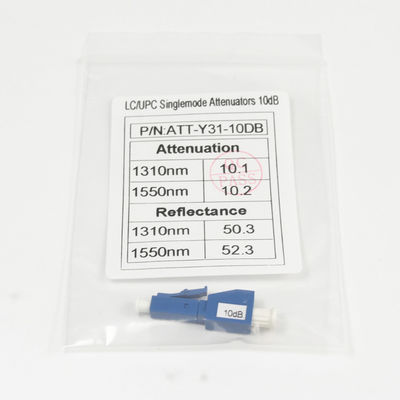

3. Elaborately designed packing for no-damage delivery


Professional designed 10-pack bag, fitting size will maximum buffered the collision in transit and ensure no-damage delivery.
